| Model Number : | H01N2-D-50 |
| Payment Terms : | T/T,Western Union |
| Supply Ability : | 500000m per month |
| Certification : | ISO9001 CE RoHS |
| Brand Name : | UME |



1. Application
2. Description

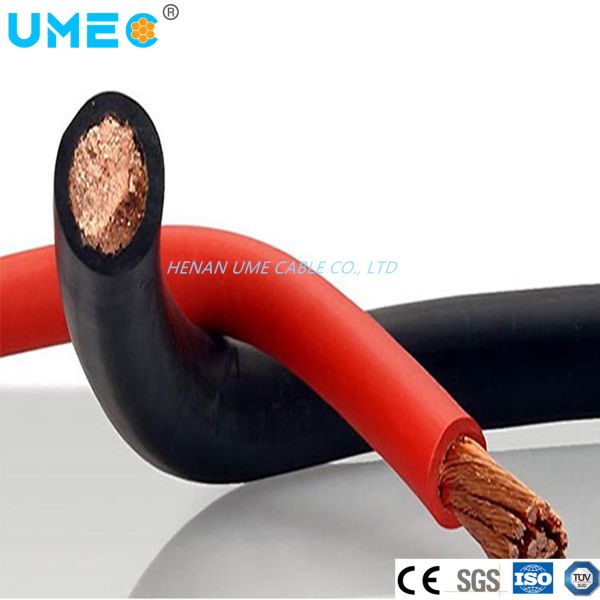

This 50mm² (1/0 AWG) welding cable is designed for heavy-duty
welding applications, featuring high-purity stranded copper
conductors for excellent conductivity and low voltage drop. The
outer layer is made of premium rubber insulation, which is
oil-resistant, ozone-resistant, weather-resistant, and highly
flexible for easy handling in tight spaces and frequent movement.
Rated at 0.6/1kV, it provides reliable power transmission while
resisting abrasion, cuts, and mechanical damage. Available in red
and black for positive/negative circuit identification, it meets
CE, SGS, ISO, and TUV standards for quality and safety.
3. Specification
- Conductor: 50mm² (1/0 AWG) bare copper, finely stranded for maximum flexibility
- Insulation: EPR/EPDM rubber compound with heat, oil, ozone, and abrasion resistance
- Voltage Rating: 600/1000V AC/DC, suitable for all standard welding machine outputs
- Construction: Single-core, round, flexible design
- TemperatureRating: 90℃ continuous operation, withstanding short-term welding heat exposure
- Certifications: CE, SGS, ISO 9001, TUV certified for safety and quality
- Customization: Available in custom lengths, colors, and packaging to meet requirements
| Parameter | Specification |
|---|---|
| Cross-sectional Area | 50 mm² (1/0 AWG) |
| Conductor Material | High-purity stranded bare copper |
| Insulation Material | EPR/EPDM rubber (heat-resistant, oil-resistant) |
| Rated Voltage | 0.6/1 kV |
| Conductor Resistance (max at 20℃) | ≤0.387 Ω/km |
| Operating Temperature Range | -40℃ ~ +90℃ (continuous), up to 120℃ short-term |
| Outer Diameter | Approx. 15.1 mm |
| Color Options | Red, Black (customizable) |
| Standards Compliance | IEC 60245, CE, SGS, ISO 9001, TUV |
| Flexibility | Highly flexible for easy coiling and routing |
| Application Type | Welding machine leads, battery cables, temporary power |
HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!
Production:






Q1: Are you a manufacturer?
Yes, we are the manufacturer.
Q2: What are your main products?
Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel),
CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s'
Conductor.
Q3: Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free
Q4: Is the quality of your products guaranteed?
We have passed ISO9001, ISO14001, ISO45001, and all our products
have CE certificates.
Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East,
Southeast Asia, South America, Central America, North America,
Europe, Australia, etc.
Q6: What is your payment term?
T/T or L/C
Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is
7-30days if the goods are not in stock, it is according to
quantity.
|
