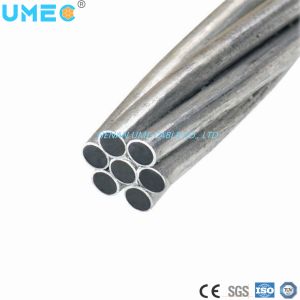

Aluminum Clad Steel Strand for Customer Specified Bare Acs Distribution Line

ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.

1. Applications
We use the acs conductor for overhead shield wire in high corrosion areas such as industrial, seashore, and desert environments. When the long life and superior corrosion resistance is desired for the wire and conductor, aluminium clad steel wire is a very good choice.

2. Construction
Aluminum clad steel stranded wire is made of an aluminum clad steel wire core stranded with one or more layers of single aluminum clad steel wire in spiral. Opposite stranding direction between neighboring layers provides higher mechanical strength and corrosion resistance.

3. Standard
ASTM B416, DIN 48201, ASTM B415

Section mm2	Structure n/mm	Section mm²			Outer Diameter	DC Resistance Ω/km	Strength KN	Weight kg/km	Delivery Length m (min)
		Al	St	Total
16	3/2.60	3.98	11.95	15.93	5.6	5.367	21.34	105.8	2500
25	3/3.25	6.22	18.67	24.89	7	3.435	33.35	165.3	2000
35	3/3.85	8.73	26.19	34.92	8.3	2.448	43.65	232	1500
50	3/4.60	12.46	37.4	49.86	9.91	1.714	56.84	331.2	1000
16	7/1.70	3.97	11.92	15.89	5.1	5.391	21.29	105.8	2500
25	7/2.15	6.35	19.06	25.41	6.45	3.37	34.05	169.1	2500
30	7/2.30	7.27	21.81	29.08	6.9	2.945	38.97	193.6	2500
35	7/2.50	8.59	25.77	34.36	7.5	2.493	46.04	228.7	2500
40	7/2.75	10.4	31.18	41.58	8.25	2.06	57.72	276.7	2000
50	7/3.00	12.57	37.11	49.48	9	1.731	66.3	329.3	1500
55	7/3.20	14.08	42.22	56.3	9.6	1.521	75.44	374.7	1500
65	7/3.50	16.84	50.51	67.35	10.5	1.272	85.53	448.3	1500
70	7/3.60	17.81	53.44	71.25	10.8	1.202	90.48	474.2	1500
80	7/3.80	19.85	59.54	79.39	11.4	1.079	99.23	528.4	1500
95	7/4.16	23.79	71.35	95.14	12.48	0.9	112.26	633.3	1500
80	19/2.32	20.08	60.24	80.32	11.6	1.071	107.62	536.7	2000
100	19/2.60	25.22	75.66	100.88	13	0.852	135.18	674.1	2000
120	19/2.85	30.3	90.91	121.21	14.25	0.709	162.42	809.9	2000
150	19/3.15	37.02	111.05	148.07	15.75	0.581	198.41	989.4	1500
185	19/3.50	45.7	137.1	182.8	17.5	0.47	232.15	1221.5	1500
210	19/3.75	52.46	157.39	209.85	18.75	0.41	262.31	1402.3	1250
240	19/4.00	59.69	179.07	238.76	20	0.36	288.89	1595.5	1250
300	37/3.20	74.39	223.18	297.57	22.4	0.291	398.74	2000.2	1500
400	37/3.70	99.46	298.37	397.83	25.9	0.217	497.28	2674.1	1250
500	37/4.16	125.72	377.18	502.9	29.12	0.172	593.42	3380.4	1000
630	61/3.63	157.82	473.48	631.3	32.67	0.138	801.75	4272.6	1000
800	61/4.10	201.33	604.02	805.35	36.9	0.108	974.48	5450.6	1000

ASTM B415

Nominal Diameter		Area	Min Tensile Strength	Calculated Breaking Load	Min Coating Thickness	Max D.C Resistance at 20 degree	Weight
mm	AWG	Mm2	Mpa	KN	mm	Ohm/KM	Kg/Km
2.052	12	3.307	1340	4.5	0.103	25.64	21.8
2.304	11	4.169	1340	5.6	0.115	20.34	27.49
2.589	10	5.26	1340	7.1	0.13	16.12	34.66
2.904	9	6.633	1340	8.9	0.145	12.78	43.65
3.264	8	8.367	1340	11.2	0.163	10.14	55.14
3.477	7	9.495	1310	12.4	0.174	8.93	62.57
3.665	7	10.55	1280	13.5	0.183	8.04	69.48
3.934	6	12.16	1240	15.1	0.197	6.93	80.13
4.115	6	13.3	1210	16	0.206	6.38	87.62
4.392	5	15.15	1170	17.7	0.22	5.6	99.84
4.62	5	16.76	1140	19.1	0.231	5.06	110.5
4.775	4	17.91	1100	19.7	0.239	4.73	118
5.189	4	21.15	1070	22.6	0.259	4.01	139.34

DIN 48201

Code Number	Area	No. of wires	Diameters(mm)		Weight	Rated Strength	DC Resistance
mm2	mm2	No. of wires	wire	conductor	kg/km	kN	ohm/km
25	24.25	7	2.1	6.3	162	31.56	3.546
35	34.36	7	2.5	7.5	229	44.72	2.499
50	49.48	7	3	9	330	64.4	1.736
70	65.81	19	2.1	10.5	441	85.65	1.313
95	93.27	19	2.5	12.5	626	121.39	0.925
120	116.99	19	2.8	14	785	152.26	0.737
150	147.11	37	2.25	15.7	990	191.46	0.587
185	181.62	37	2.5	17.5	1221	236.38	0.476
240	242.54	61	2.25	20.2	1635	299.05	0.357
300	299.43	61	2.5	22.5	2017	369.2	0.289

HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!

Production:

Raw material inspection and test
Production process test
Unqualified product control
Regular test and examination
Finished product inspection

UME CABLE has completed several third-party product certifications to ensure our customers that all of the wire and cable purchased and installed in your projects, will fully and consistently meet all criteria of the required production and performance standards, also you are guaranteed we (as the manufacturer) and the products supplied are both valid and continuously monitored by those globally recognized quality verification system listed as below: ISO9001, ISO14001, ISO45001, CE, SGS, TUV.

Aluminum Clad Steel Strand for Customer Specified Bare Acs Distribution Line

UME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have supplied quality products to more than 50 countries. Our mission is to offer our customers the best quality cable and wire products at the most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services, and robust products.

UME Cable was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, and occupies a total area of more than 200,000 square meters, with a building area of 20,000 square meters. The real capital assets are more than USD 6 million, with a total of 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be the top scale of industry, but our highly automatic facilities and elite employees are the best in the industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with the most competitive price within the market.

Q1: Are you a manufacturer?
Yes, we are the manufacturer.

Q2: What are your main products?
Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel), CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s' Conductor.

Q3: Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free

Q4: Is the quality of your products guaranteed?
We have passed ISO9001, ISO14001, ISO45001, and all our products have CE certificates.

Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.

Q6: What is your payment term?
T/T or L/C

Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is 7-30days if the goods are not in stock, it is according to quantity.
