Third Party Inspection Accepted XLPE Insulated Armoured Cable for Underground Projects

Ask Lasest Price
Certification :	ISO9001, CE, SGS TUV
Supply Ability :	500, 000km Per Month

Add to Cart

Product Details
Company Profile

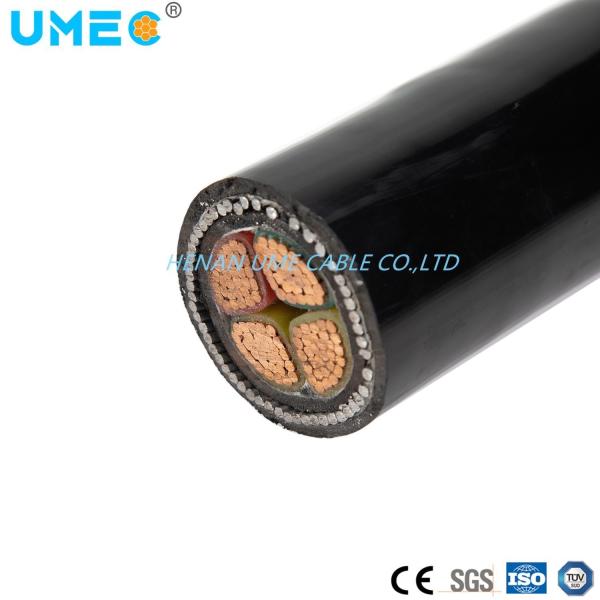

Third Party Inspection Accepted XLPE Insulated Armoured Cable for Underground Projects

ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.

1. Application
Power cable suitable for power networks, direct burial, outdoors, indoors and in cable ducts.

2. Construction

Conductors: Plain annealed stranded copper
Insulation: XLPE
Sheath: PVC
Voltage: 0.6/1KV
Operating temperature: Maximum 90 ºC. Minimum bending 0 ºC.

3. Standard

IEC 60502, BS5467

2 cores

Size Sq.mm	Class Of conductor	Max. diameter over conductor mm	insulation Thickness	Diameter over core mm	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	1.59	0.6	3.0	0.8	7.7	0.9	9.6	12.3	300
2.5	2	2.01	0.7	3.4	0.8	8.5	0.9	10.4	13.6	360
4	2	2.55	0.7	4.0	0.8	9.7	0.9	11.6	14.7	420
6	2	3.12	0.7	4.5	0.8	10.7	0.9	12.6	15.9	500
10	2	4.05	0.7	5.5	0.8	12.7	0.9	14.6	18.0	650
16	2	5.10	0.7	6.5	0.8	14.5	1.25	17.0	20.0	910
25	2*	-	0.9	-	0.8	18.4	1.25	20.9	24.1	1060
35	2*	-	0.9	-	1.0	21.3	1.6	24.5	27.9	1480
50	2S	-	1.0	-	1.0	19.0	1.6	22.2	25.8	1800
70	2S	-	1.1	-	1.0	22.0	1.6	25.2	29.0	2300
95	2S	-	1.1	-	1.2	25.1	2.0	29.1	33.1	3170
120	2S	-	1.2	-	1.2	27.9	2.0	31.9	36.1	3800
150	2S	-	1.4	-	1.2	30.9	2.0	34.9	39.3	4500
185	2S	-	1.6	-	1.4	34.9	2.5	39.9	44.7	5800
240	2S	-	1.7	-	1.4	39.0	2.5	44.0	59.0	7280
300	2S	-	1.8	-	1.6	43.3	2.5	48.3	53.5	8750
400	2S	-	2.0	-	1.6	48.4	2.5	53.4	59.0	10700

3 cores

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	8.2	0.9	10.1	12.8	341
2.5	2	0.8	9.1	0.9	11.0	14.1	405
4	2	0.8	10.4	0.9	12.3	15.3	495
6	2	0.8	11.5	0.9	13.4	16.6	600
10	2	0.8	13.7	1.25	16.4	19.5	900
16	2	0.8	15.5	1.25	18.0	21.2	1080
25	2*	1.0	20.1	1.6	23.3	26.7	1750
35	2*	1.0	22.8	1.6	26.0	29.6	2100
50	2S	1.0	21.7	1.6	24.9	28.5	2350
70	2S	1.0	25.2	1.6	28.4	32.2	3150
95	2S	1.2	28.8	2.0	32.8	37.0	4300
120	2S	1.2	32.0	2.0	36.0	40.4	5250
150	2S	1.4	35.9	2.5	40.9	45.5	6720
185	2S	1.4	40.0	2.5	45.0	49.8	8040
240	2S	1.4	44.9	2.5	49.9	55.1	10150
300	2S	1.6	49.8	2.5	54.8	60.2	12320
400	2S	1.6	55.4	2.5	60.6	66.6	15090

4 cores

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	9.0	0.9	10.9	13.5	390
2.5	2	0.8	10.0	0.9	11.9	15.0	465
4	2	0.8	11.5	0.9	13.4	16.4	579
6	2	0.8	12.7	0.9	15.3	18.7	820
10	2	0.8	15.1	1.25	17.6	21.1	1090
16	2	0.8	17.2	1.25	19.7	22.9	1400
25	2*	1.0	22.3	1.6	25.5	28.9	2100
35	2*	1.0	25.3	1.6	28.5	32.1	2580
50	2S	1.0	25.0	1.6	28.2	32.0	3000
70	2S	1.2	29.5	2.0	33.5	37.7	4300
95	2S	1.2	33.3	2.0	37.3	41.7	5510
120	2S	1.4	37.5	2.0	42.5	47.1	7150
150	2S	1.4	41.6	2.5	46.6	51.4	8500
185	2S	1.4	46.4	2.5	51.4	56.6	10300
240	2S	1.6	52.6	2.5	57.6	63.0	13000
300	2S	1.6	58.0	2.5	63.0	68.8	15750
400	2S	1.8	64.8	3.15	71.3	78.1	20450

5 cores

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	9.9	0.9	11.8	14.2	433
2.5	2	0.8	11.0	0.9	12.9	16.0	530
4	2	0.8	12.7	1.25	15.3	18.4	775
6	2	0.8	14.0	1.25	16.6	19.7	929
10	2	1.0	17.1	1.25	19.7	23.2	1300
16	2	1.0	19.8	1.6	23.1	26.6	1880
25	2	1.0	24.5	1.6	27.8	31.7	2670
35	2	1.0	25.5	1.6	28.7	33.0	2800
50	-	-	-	-	-	-	-
70	-	-	-	-	-	-	-
95	-	-	-	-	-	-	-

6 cores

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	10.9	0.9	12.8	15.2	497
2.5	2	0.8	12.1	0.9	14.0	17.1	609
4	2	0.8	13.9	0.9	16.5	19.7	886
6	2	0.8	15.4	1.25	18.0	21.3	1070
10	2	1.0	18.8	1.6	22.1	25.6	1650
16	2	1.0	21.8	1.6	25.1	28.8	2190
25	2	1.0	26.9	1.6	30.2	34.1	3090

7 cores

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	10.9	0.9	12.8	15.2	506
2.5	2	0.8	12.1	0.9	14.0	17.1	618
4	2	0.8	13.9	1.25	16.5	19.7	907
6	2	0.8	15.4	1.25	18.0	21.3	1110
10	2	1.0	18.8	1.25	22.1	25.6	1720
16	2	1.0	21.8	1.6	25.1	28.8	2300
25	2	1.0	30.2	1.6	34.3	38.6	3900

8 cores

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	11.9	1.25	14.5	17.6	663
2.5	2	0.8	13.1	1.25	15.7	18.8	793
4	2	0.8	15.3	1.25	17.9	21.2	1030
6	2	1.0	17.3	1.6	20.6	24.1	1440
10	2	1.0	20.7	1.6	24.0	27.7	1960

10 cores

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	13.9	1.25	16.5	19.8	812
2.5	2	0.8	15.5	1.25	18.1	21.4	989
4	2	1.0	18.3	1.6	21.6	25.1	1410
6	2	1.0	20.3	1.6	23.6	27.3	1680
10	2	1.0	24.3	1.6	27.6	31.5	2320

12 cores

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	14.3	1.25	16.9	19.4	854
2.5	2	0.8	16.0	1.25	18.6	22.4	1080
4	2	1.0	18.9	1.6	22.2	27.7	1550
6	2	1.0	21.0	1.6	24.3	28.0	1920
10	2	1.0	25.1	1.6	28.4	32.3	2660

16 cores

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	16.0	1.25	18.6	21.9	1020
2.5	2	0.8	18.2	1.6	21.5	25.0	1430
4	2	1.0	22.1	1.6	25.4	29.1	1950
6	2	1.0	23.4	1.6	26.7	30.4	2300

HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!

Production:

Raw material inspection and test
Production process test
Unqualified product control
Regular test and examination
Finished product inspection

UME CABLE has completed several third-party product certifications to ensure our customers that all of the wire and cable purchased and installed in your projects, will fully and consistently meet all criteria of the required production and performance standards, also you are guaranteed we (as the manufacturer) and the products supplied are both valid and continuously monitored by those globally recognized quality verification system listed as below: ISO9001, ISO14001, ISO45001, CE, SGS, TUV.

Third Party Inspection Accepted XLPE Insulated Armoured Cable for Underground Projects

UME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have supplied quality products to more than 50 countries. Our mission is to offer our customers the best quality cable and wire products at the most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services, and robust products.

UME Cable was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, and occupies a total area of more than 200,000 square meters, with a building area of 20,000 square meters. The real capital assets are more than USD 6 million, with a total of 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be the top scale of industry, but our highly automatic facilities and elite employees are the best in the industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with the most competitive price within the market.

Q1: Are you a manufacturer?
Yes, we are the manufacturer.

Q2: What are your main products?
Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel), CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s' Conductor.

Q3: Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free

Q4: Is the quality of your products guaranteed?
We have passed ISO9001, ISO14001, ISO45001, and all our products have CE certificates.

Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.

Q6: What is your payment term?
T/T or L/C

Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is 7-30days if the goods are not in stock, it is according to quantity.
