    Overhead Range Bare Copper Conductor Solid or Stranded Wire and Cable without Insulation

    Ask Lasest Price
    Certification : ISO9001, CE, SGS TUV
    Supply Ability : 500, 000km Per Month
    • Product Details
    • Company Profile

    Overhead Range Bare Copper Conductor Solid or Stranded Wire and Cable without Insulation

    Product Description

    ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
    Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.

    Overhead Range Bare Copper Conductor Solid or Stranded Wire and Cable without Insulation
    Overhead Range Bare Copper Conductor Solid or Stranded Wire and Cable without Insulation



    1. Applications
    Solid and stranded (classes AA and A) bare copper are suitable for overhead transmission and distribution applications. Stranded conductor of greater flexibility (classes B and C) are suitable for uninsulated hook up, jumpers, and grounds in electrical construction. Soft Drawn copper is unilay construction.

    2. Construction
    Bare copper, solid or stranded. Available in tempers hard, medium-hard, or soft. Stranded conductors are concentrically stranded in hard and medium-hard tempers and are Combination Unilay stranded in the soft-drawn temper.

    3. Standard
    BS 7884, ASTM SOLID, ASTM CLASS A, ASTM CLASS B

    Product Parameters
    ASTM CLASS A
    Size Nominal Cross
    Section Area    		 No./Nominal Dia.
    of Wire    		 Approx. Overall
    Dia.    		 Approx.
    Weight    		 Nominal Breaking
    Load    		 Nominal DC Resistance
    at 20°C
    AWG Cmils mm2 No./mm mm kg/km kN Ω/km
    4 41740 21.1 7/1.96 5.88 192.0 9.6 0.8650
    2 66360 33.6 7/2.47 7.42 305.0 14.9 0.5440
    1/0 105600 53.5 7/3.12 9.36 485.0 23.5 0.3420
    2/0 133100 67.4 7/3.50 10.50 611.0 29.3 0.2710
    4/0 211600 107.2 7/4.42 13.20 972.0 45.0 0.1710
    250 250000 126.7 19/2.91 14.60 1149.0 56.4 0.1440
    300 300000 152.0 19/3.19 16.00 1379.0 66.9 0.1200
    350 350000 177.3 19/3.45 17.20 1609.0 77.1 0.1030
    400 400000 202.7 19/3.69 18.40 1838.0 87.0 0.0900
    500 500000 253.4 37/2.95 20.70 2298.0 111.5 0.0720
    600 600000 304.0 37/3.23 22.60 2758.0 133.8 0.0600
    700 700000 354.7 61/2.72 24.50 3216.0 157.8 0.0520
    750 750000 380.0 61/2.82 25.30 3447.0 169.1 0.0480
    800 800000 405.4 61/2.91 26.20 3676.0 178.4 0.0450
    900 900000 456.0 61/3.09 27.80 4136.0 200.6 0.0400
    1000 1000000 506.7 61/3.25 29.30 4596.0 223.0 0.0360
    ASTM CLASS B
    Size Nominal Cross
    Section Area    		 No./Nominal Dia.
    of Wire    		 Approximate Overal
    Dia.    		 Approx.
    Weight    		 Nominal Breaking
    Load    		 Nominal DC Resistance
    at 20°C
    AWG Cmils mm2 No./mm mm Kg/km kN Ω/km
    6 26240 13.3 7/1.56 4.67 121.0 6.0 1.3800
    4 41740 21.1 7/1.96 5.88 192.0 9.6 0.8650
    2 66360 33.6 7/2.47 7.42 305.0 14.9 0.5440
    1/0 105600 53.5 19/1.89 9.47 485.0 24.3 0.3420
    2/0 133100 67.4 19/2.13 10.60 611.0 30.3 0.2710
    4/0 211600 107.2 19/2.68 13.40 972.0 47.7 0.1710
    250 250000 126.7 37/2.09 14.60 1149.0 57.0 0.1440
    300 300000 152.0 37/2.29 16.00 1379.0 68.4 0.1200
    350 350000 177.3 37/2.47 17.30 1609.0 78.9 0.1030
    400 400000 202.7 37/2.64 18.50 1838.0 90.2 0.0900
    500 500000 253.4 37/2.95 20.70 2298.0 111.5 0.0720
    600 600000 304.0 61/2.52 22.70 2758.0 135.3 0.0600
    700 700000 354.7 61/2.72 24.50 3216.0 157.8 0.0520
    750 750000 380.0 61/2.82 25.30 3447.0 169.1 0.0480
    800 800000 405.4 61/2.91 26.20 3676.0 178.4 0.0450
    900 900000 456.0 61/3.09 27.80 4136.0 200.6 0.0400
    1000 1000000 506.7 61/3.25 29.30 4596.0 223.0 0.0360
    BS 7884
    Nominal Cross
    Section Area    		 No./Nominal Dia.
    of Wire    		 Approx. Overall
    Dia.    		 Approx.
    weight    		 Nominal DC Resistance
    at 20°C    		 Nominal Breaking
    Load
    Nominal Max.
    mm2 No./mm mm kg/km Ω/km Ω/km N
    10 7/1.35 4.05 89.82 1.7880 1.8290 3752
    14 7/1.60 4.80 126.2 1.2730 1.3030 5267
    16 3/2.65 5.70 148.3 1.0820 1.1060 6194
    16 7/1.70 5.10 142.4 1.1280 1.1540 5946
    25 7/2.10 6.30 217.3 0.7391 0.7563 9073
    32 3/3.75 8.06 296.9 0.5405 0.5520 12400
    32 7/2.46 7.38 298.2 0.5386 0.5497 12442
    35 7/2.50 7.50 308.0 0.5215 0.5337 12860
    50 7/3.00 9.00 443.5 0.3622 0.3706 18520
    50 19/1.80 9.00 435.8 0.3727 0.3819 17700
    70 7/3.55 10.65 621.1 0.2586 0.2646 25930
    70 19/2.10 10.50 593.2 0.2738 0.2806 24090
    95 19/2.50 12.50 840.7 0.1932 0.1980 34140
    100 7/4.30 12.90 911.2 0.1763 0.1810 36540
    120 19/2.80 14.00 1055 0.1540 0.1578 42830
    125 19/2.90 14.50 1131 0.1436 0.1471 45940
    150 19/3.20 16.00 1377 0.1180 0.1208 55940
    150 37/2.25 15.75 1334 0.1233 0.1264 53880
    185 19/3.55 17.75 1695 0.09582 0.09815 68860
    185 37/2.50 17.50 1647 0.09981 0.1024 66490
    ASTM SOLID
    Nominal Cross
    Section Area    		 No./Nominal Dia.
    of Wire    		 Approx. Overall
    Dia.    		 Approx.
    weight    		 Nominal DC Resistance
    at 20°C    		 Nominal Breaking
    Load
    Nominal Max.
    mm2 No./mm mm kg/km Ω/km Ω/km N
    10 7/1.35 4.05 89.82 1.7880 1.8290 3752
    14 7/1.60 4.80 126.2 1.2730 1.3030 5267
    16 3/2.65 5.70 148.3 1.0820 1.1060 6194
    16 7/1.70 5.10 142.4 1.1280 1.1540 5946
    25 7/2.10 6.30 217.3 0.7391 0.7563 9073
    32 3/3.75 8.06 296.9 0.5405 0.5520 12400
    32 7/2.46 7.38 298.2 0.5386 0.5497 12442
    35 7/2.50 7.50 308.0 0.5215 0.5337 12860
    50 7/3.00 9.00 443.5 0.3622 0.3706 18520
    50 19/1.80 9.00 435.8 0.3727 0.3819 17700
    70 7/3.55 10.65 621.1 0.2586 0.2646 25930
    70 19/2.10 10.50 593.2 0.2738 0.2806 24090
    95 19/2.50 12.50 840.7 0.1932 0.1980 34140
    100 7/4.30 12.90 911.2 0.1763 0.1810 36540
    120 19/2.80 14.00 1055 0.1540 0.1578 42830
    125 19/2.90 14.50 1131 0.1436 0.1471 45940
    150 19/3.20 16.00 1377 0.1180 0.1208 55940
    150 37/2.25 15.75 1334 0.1233 0.1264 53880
    185 19/3.55 17.75 1695 0.09582 0.09815 68860
    185 37/2.50 17.50 1647 0.09981 0.1024 66490
    Size
    AWG/kcmil    		 No. of Strands Stranding Class Strand Type Temper Nom. OD (mils) Nominal Total Weight (lbs/1000') Allowable Ampacity Rated Strength (lbs) DC Resistance at 20°C (ohms/1000')
    14 AWG 1 A SOL SD 64 12 124.2 2.525
    12 AWG 1 A SOL SD 80 20 197.5 1.588
    10 AWG 1 A SOL SD 101 31 314 0.999
    8 AWG 1 A SOL SD 128 50 95 479.8 0.628
    8 AWG 7 B CONV SD 148 51 95 499 0.6408
    6 AWG 1 A SOL SD 161 79 125 762.9 0.395
    6 AWG 7 B CONV SD 183 81 130 794 0.403
    4 AWG 1 A SOL SD 204 126 170 1213 0.249
    4 AWG 7 B CONV SD 231 129 170 1320 0.2534
    3 AWG 1 A SOL SD 229 159 195 1530 0.197
    3 AWG 7 B CONV SD 260 162 200 1670 0.201
    2 AWG 1 A SOL SD 257 201 225 1929 0.156
    2 AWG 7 B CONV SD 292 205 230 2110 0.1578
    1/0 AWG 7 A CONV SD 368 326 310 3221 0.1002
    1/0 AWG 19 B COMBUL SD 360 338 355 4024 0.07949
    2/0 AWG 7 A CONV SD 413 411 355 4062 0.07949
    2/0 AWG 19 B COMBUL SD 404 411 355 4024 0.07949
    3/0 AWG 7 A CONV SD 473 518 410 5118 0.06304
    3/0 AWG 19 B COMBUL SD 454 520 410 0.06431
    4/0 AWG 7 A CONV SD 521 653 480 6459 0.04999
    4/0 AWG 19 B COMBUL SD 510 653 480 6453 0.04999
    250 KCMIL 19 A CONV SD 573 772 530 7627 0.04231
    250 KCMIL 37 B CONV SD 575 772 530 7940 0.04231
    300 KCMIL 37 B CONV SD 630 926 590 9160 0.03526
    350 KCMIL 19 A CONV SD 678 1081 650 10680 0.03022
    500 KCMIL 37 B CONV SD 813 1544 810 15240 0.02116
    750 KCMIL 61 A CONV SD 998 2316 1040 22890 0.0141
    1000 KCMIL 61 B CONV SD 1152 3087 1240 30500 0.1058
    TESTING

    HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!

    Production:

    • Raw material inspection and test
    • Production process test
    • Unqualified product control
    • Regular test and examination
    • Finished product inspection
    Overhead Range Bare Copper Conductor Solid or Stranded Wire and Cable without Insulation

    Certifications
    UME CABLE has completed several third-party product certifications to ensure our customers that all of the wire and cable purchased and installed in your projects, will fully and consistently meet all criteria of the required production and performance standards, also you are guaranteed we (as the manufacturer) and the products supplied are both valid and continuously monitored by those globally recognized quality verification system listed as below: ISO9001, ISO14001, ISO45001, CE, SGS, TUV.
    Overhead Range Bare Copper Conductor Solid or Stranded Wire and Cable without Insulation

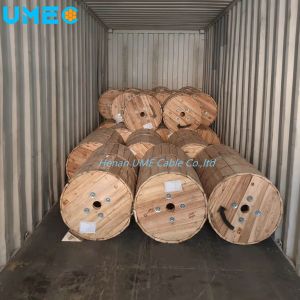

    Packaging & Shipping

    Overhead Range Bare Copper Conductor Solid or Stranded Wire and Cable without Insulation
    Overhead Range Bare Copper Conductor Solid or Stranded Wire and Cable without Insulation
    Customer Visit

    Overhead Range Bare Copper Conductor Solid or Stranded Wire and Cable without Insulation

    Company Profile
    Overhead Range Bare Copper Conductor Solid or Stranded Wire and Cable without Insulation
    UME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have supplied quality products to more than 50 countries. Our mission is to offer our customers the best quality cable and wire products at the most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services, and robust products.

    UME Cable was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, and occupies a total area of more than 200,000 square meters, with a building area of 20,000 square meters. The real capital assets are more than USD 6 million, with a total of 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be the top scale of industry, but our highly automatic facilities and elite employees are the best in the industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with the most competitive price within the market.

    FAQ

    Q1: Are you a manufacturer?
    Yes, we are the manufacturer.

    Q2: What are your main products?
    Our products range as follows:
    1. Electrical wire/PVC Building Wires.
    2. PVC/XLPE insulated Power Cables up to 110kv.
    3. Overhead Aerial Bundle Cable/ABC Cables.
    4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
    5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel), CCS(Copper Clad Steel).
    6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
    7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s' Conductor.

    Q3: Do you provide samples? Is it free or extra?
    Yes, we could offer the samples for free

    Q4: Is the quality of your products guaranteed?
    We have passed ISO9001, ISO14001, ISO45001, and all our products have CE certificates.

    Q5: Which markets do you involve mainly in?
    Our products have been exported mainly to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.

    Q6: What is your payment term?
    T/T or L/C

    Q7: What about the delivery time?
    Generally, it is 3-7days if the goods are in stock. Or it is 7-30days if the goods are not in stock, it is according to quantity.
