ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export
to over 50 countries.
For air networks of secondary distribution of low-cost electricity
in urban and rural areas.
They are installed both in posts and attached to walls, in both
cases, with the appropriate accessories. They do not require the
use of insulators.

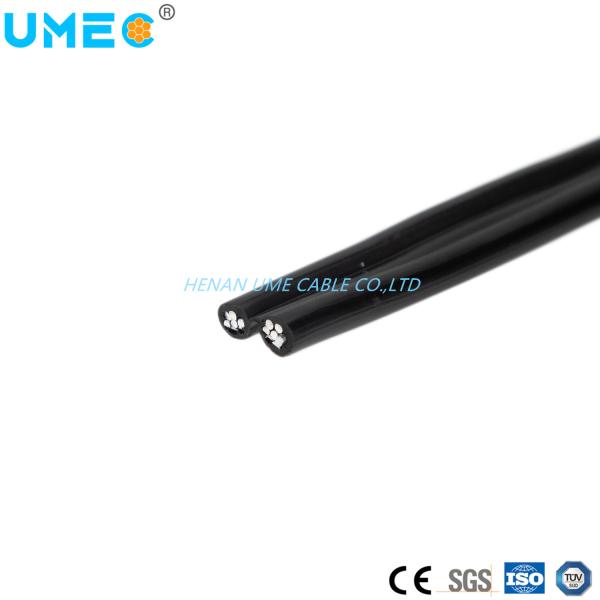

CAAI CABLE - Phase Conductor
Phase conductor (Aluminum Conductor ) | |||||||
Size | Construction of Conductor | XLPE Insulation | Approx. | Max. DC Resistance | |||
No. of Wire | Dia. of Wire | Approx. Conductor Dia. | Nominal Thickness | Insulation Dia. | Weight | at 20°C of conductor | |
mm2 | No. | mm | mm | mm | mm | kg/km | Ω/km |
16 | 7 | 1.72 | 4.8 | 1.14 | 7.08 | 63.35 | 1.91 |
25 | 7 | 2.18 | 6 | 1.14 | 8.28 | 91.75 | 1.2 |
35 | 7 | 2.55 | 7 | 1.14 | 9.28 | 120.56 | 0.868 |
50 | 7 | 2.97 | 8 | 1.52 | 11.04 | 168.55 | 0.641 |
70 | 19 | 2.2 | 10 | 1.52 | 13.04 | 235.51 | 0.443 |
95 | 19 | 2.58 | 11.6 | 1.52 | 14.64 | 312.79 | 0.32 |
120 | 19 | 2.88 | 13 | 2.03 | 17.06 | 413.94 | 0.253 |
Phase conductor (Aluminum Conductor ) | |||||||
Size | Construction of Conductor | XLPE Insulation | Approx. | Max. DC Resistance | |||
No. of Wire | Dia. of Wire | Approx. Conductor Dia. | Nominal Thickness | Insulation Dia. | Weight | at 20°C of conductor | |
mm2 | No. | mm | mm | mm | mm | kg/km | Ω/km |
16 | 7 | 1.72 | 4.8 | 1.14 | 7.08 | 63.35 | 1.91 |
25 | 7 | 2.18 | 6 | 1.14 | 8.28 | 91.75 | 1.2 |
35 | 7 | 2.55 | 7 | 1.14 | 9.28 | 120.56 | 0.868 |
50 | 7 | 2.97 | 8 | 1.52 | 11.04 | 168.55 | 0.641 |
70 | 19 | 2.2 | 10 | 1.52 | 13.04 | 235.51 | 0.443 |
95 | 19 | 2.58 | 11.6 | 1.52 | 14.64 | 312.79 | 0.32 |
120 | 19 | 2.88 | 13 | 2.03 | 17.06 | 413.94 | 0.253 |
Street Lighting Conductor ( Aluminum Conductor ) | |||||||
Size | Construction of Conductor | XLPE Insulation | Approx. | Max. DC Resistance | |||
No. of Wire | Dia. of Wire | Approx. Conductor Dia. | Nominal Thickness | Insulation Dia. | Weight | at 20°C of Conductor | |
mm2 | No. | mm | mm | mm | mm | kg/km | Ω/km |
16 | 7 | 1.72 | 4.8 | 1.14 | 7.08 | 63.35 | 1.91 |
25 | 7 | 2.18 | 6 | 1.14 | 8.28 | 91.75 | 1.2 |
Completed Cable | |||||
Size | Approx. Overall Dia. | Approx. Weight | Size | Approx. Overall Dia. | Approx. Weight |
mm2 | mm | kg/km | mm2 | mm | kg/km |
1x16 | 7.08 | 63.4 | 1x16+16+ND25 | 14.83 | 196.2 |
1x25 | 8.28 | 91.8 | 1x16+16+NA25 | 16.47 | 222.7 |
1x35 | 9.28 | 120.6 | 2x16+16+ND25 | 16.73 | 259.6 |
1x50 | 11.04 | 168.6 | 2x25+16+ND25 | 18.18 | 316.4 |
1x70 | 13.04 | 235.5 | 2x16+16+NA25 | 18.12 | 286 |
1x95 | 14.64 | 321.8 | 2x25+16+NA25 | 19.56 | 342.8 |
1x120 | 17.06 | 413.9 | 2x35+16+NA25 | 20.77 | 400.5 |
1x150 | 18.46 | 490.7 | 3x16+NA25 | 16.68 | 284.9 |
2x16 | 14.16 | 126.7 | 3x25+NA25 | 20.22 | 370.1 |
2x25 | 16.56 | 183.5 | 3x16+16+ND25 | 18.79 | 322.9 |
2x35 | 18.56 | 241.1 | 3x16+16+NA25 | 20.02 | 349.4 |
3x16 | 15.25 | 190.1 | 3x25+16+NA25 | 21.97 | 434.6 |
3x25 | 17.83 | 275.3 | 3x25+2x16+NA25 | 23.93 | 499.1 |
3x35 | 19.98 | 361.7 | 2x35+ND25 | 17.92 | 309.5 |
3x50 | 23.78 | 505.7 | 2x35+NA25 | 19.55 | 336 |
3x70 | 28.08 | 706.5 | 3x35+NA25 | 22.04 | 456.5 |
4x16 | 17.09 | 253.4 | 3x35+16+ND25 | 22.36 | 494.6 |
4x25 | 19.98 | 367.1 | 3x35+16+NA25 | 23.59 | 521 |
1x16+ND25 | 13.47 | 131.8 | 3x35+2x16+NA25 | 25.44 | 585.5 |
1x16+NA25 | 15.75 | 158.2 | 3x50+NA35 | 25.93 | 631.9 |
1x25+NA25 | 16.95 | 186.6 | 3x50+16+NA25 | 26.38 | 663.8 |
2x16+ND25 | 14.75 | 195.1 | 3x50+16+NA35 | 27.07 | 696.4 |
2x16+NA25 | 16.39 | 221.5 | 3x50+25+NA35 | 27.77 | 724.7 |
2x25+ND25 | 16.47 | 251.9 | 3x70+NA35 | 29.55 | 832.8 |
2x25+16 | 16.97 | 246.9 | 3x70+16+NA50 | 31.53 | 957.5 |
2x35+16 | 18.48 | 305.7 | 3x70+25+NA50 | 32.24 | 985.8 |
3x25+16 | 19.32 | 339.8 | 3x95+16+NA50 | 34.13 | 1188.3 |
3x35+16 | 21.13 | 426.2 | 3x95+NA50 | 33.81 | 1124.9 |
3x120+16 | 36.75 | 1306.3 | 3x95+16+NA70 | 35.02 | 1252.1 |
2x25+NA25 | 18.12 | 278.4 | 3x120+16+NA70 | 38.94 | 1555.5 |
HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!
